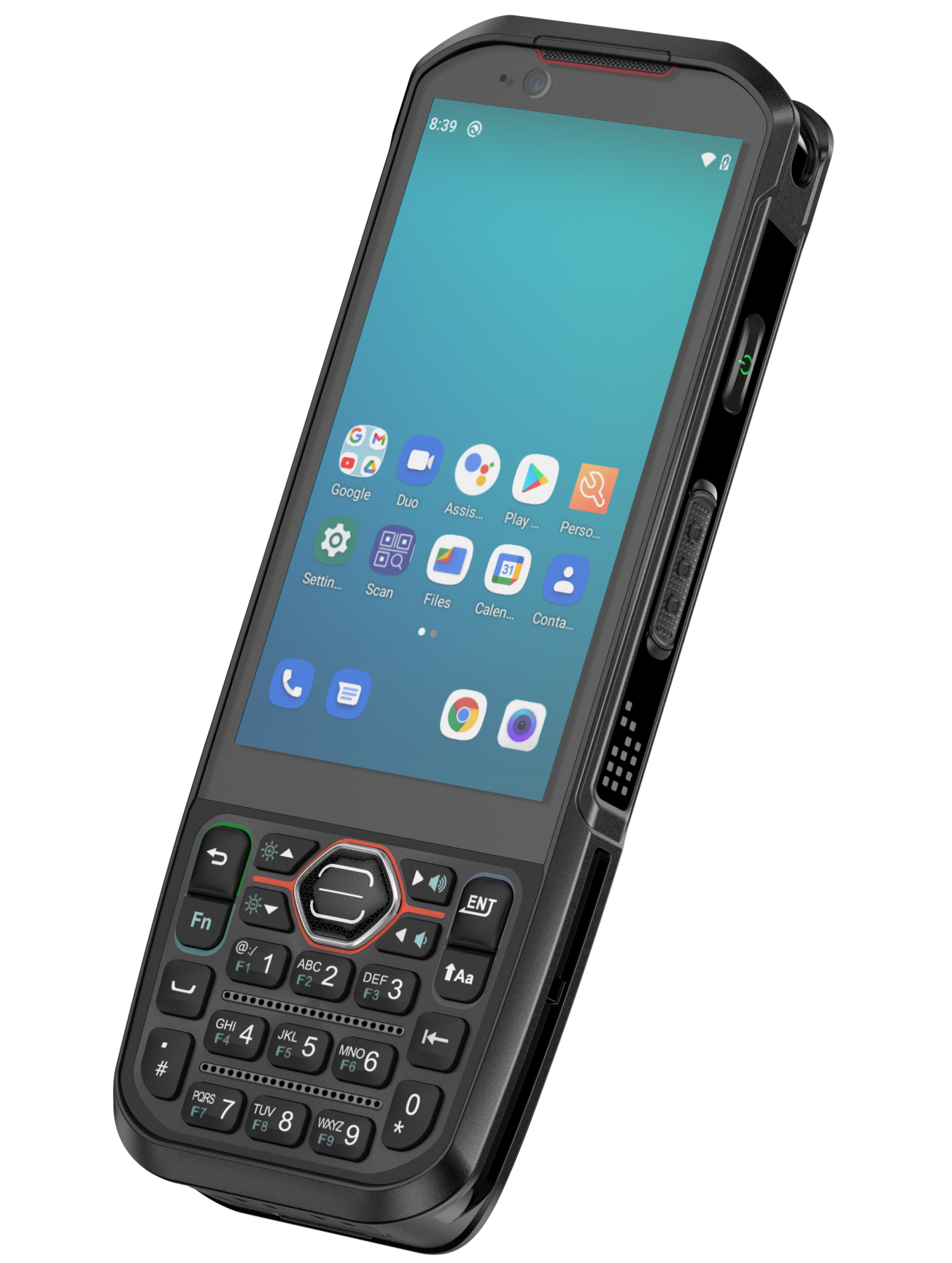

TargetPoint H40 Smart POS

**Product Overview**
The TargetPoint H40 is a rugged smart mobile terminal designed specifically for complex and high-frequency scenarios such as food delivery, fintech, retail, and restaurant ordering. It cleverly integrates a 4.2-inch IPS HD touchscreen with a 25-key physical keypad, and features a built-in professional 1D/2D barcode scanning engine. With its outstanding flagship performance, NFC payment capabilities, and industrial-grade protection standards, the H40 can effortlessly handle various demanding outdoor and mobile business environments.

**Key Highlights**
* **Ultimate Input & Scanning Experience:** It features a breakthrough combination of a 4.2-inch color display and a 25-key physical keypad (including numeric keys, arrow keys, and function switch keys). Paired with the N6602 professional 1D/2D scanning engine and dual side scan buttons, it makes high-frequency inventory checks and blind data entry incredibly efficient.
* **Flagship Robust Performance:** Powered by an Octa-core 64-bit 2.0GHz high-performance processor, equipped with a massive 4GB RAM + 64GB ROM memory, and pre-installed with the latest Android 13 operating system. This ensures the smooth, all-day operation of heavy-duty merchant applications.
* **Rugged, Reliable & Long Battery Life:** Boasts an IP66 industrial protection grade and 1.5-meter drop resistance. It houses a massive 3.8V 5200mAh battery and supports 5V/2A fast charging, making it fearless of any harsh outdoor weather conditions and high-intensity operations.
* **All-Scenario Connectivity & Payment:** Supports 4G networks, WiFi, and Bluetooth 5.0 (BLE). The built-in 13.56MHz NFC reader fully supports ISO14443A/B protocols, perfectly aligning with contactless payments, top-up services, and fintech applications.

**Technical Specifications**
* **Processor:** Octa-core 64-bit 2.0GHz high-performance processor
* **Operating System (OS):** Android 13
* **Display:** 4.2″ IPS color display, resolution 720×1280
* **Memory:** 4GB RAM + 64GB ROM
* **Camera:** Outstanding camera setup with Rear 20 MP and Front 5 MP
* **Scanner & Buttons:** N6602 engine supporting 1D/2D decoding; Total of 25 keys (22 keys on the front, 2 side scan keys, 1 side power key)
* **Connectivity:** 2G/3G/4G RF Bands (FDD/TDD), IEEE 802.11 ac/a/b/g/n WiFi, Bluetooth 5.0+BLE
* **Card Slots:** TF + NANO SIM or NANO SIM x 2 (Supports up to 256GB TF card)
* **Ports:** USB Type-C (Supports OTG)
* **GPS:** GPS / Galileo / GLONASS / Beidou
* **Battery & Power:** 3.8V 5200mAh battery; 5V 2A adapter, supports USB charging and fast charging
* **Working Environment:**
* Protection Grade: IP66 (1.5M dropping)
* Operating Temperature: -20℃ ～ 55℃
* Storage Temperature: -40℃ ～ 70℃

**Main Using Scenarios**
Thanks to its physical keypad, professional scanner, and rugged design, the H40 is the perfect terminal for the following business environments:
* **Retail & Inventory:** Highly suitable for mobile checkouts, barcode scanning for goods, high-frequency inventory counting, and rapid data entry.
* **Food Delivery & Logistics:** The massive battery and rugged rating allow riders to stably receive orders and navigate accurately even in harsh outdoor environments.
* **Fintech & Top-up:** Leveraging the NFC module and smooth OS to perfectly implement mobile/game top-ups and various contactless payment services.
* **Restaurant & Parking:** Supports high-frequency ordering operations for waiters and all-weather mobile toll management in outdoor parking lots.
