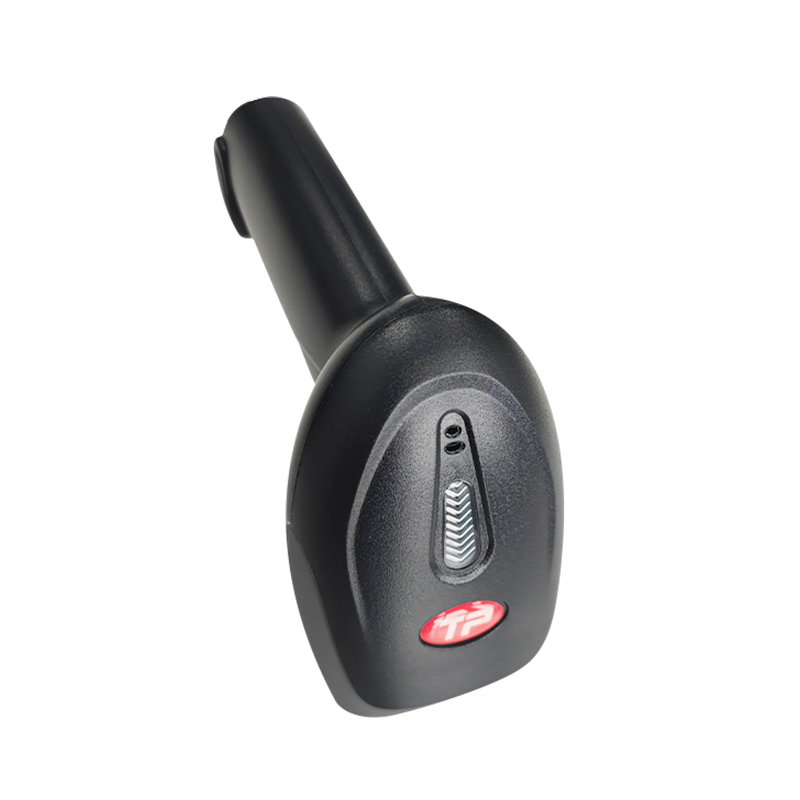

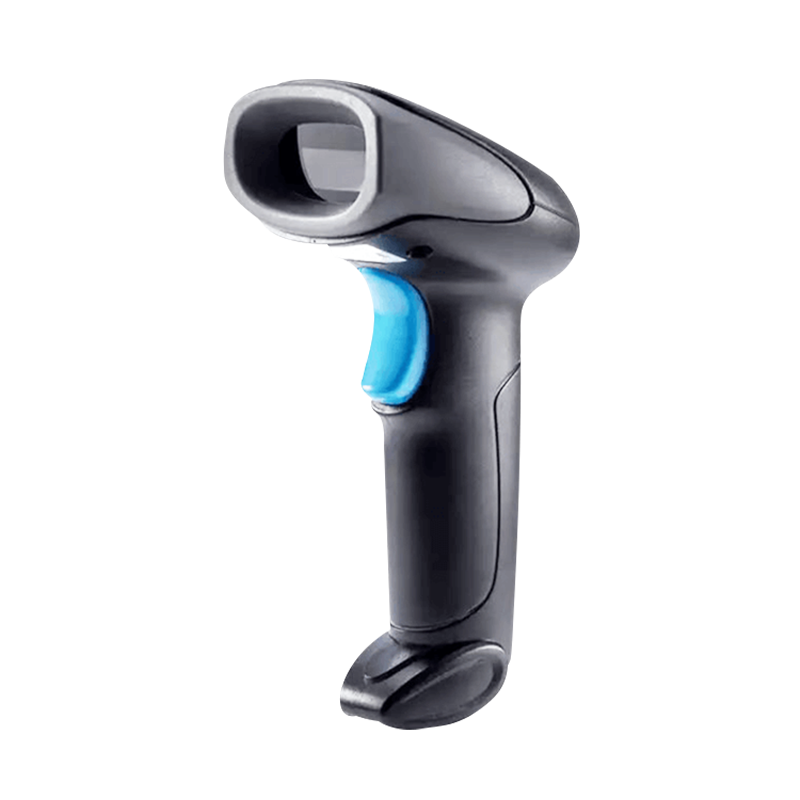

S21 Handheld 2D Barcode Scanner

The Targetpoint S21 is a handheld 2D barcode scanner for retail counters, warehouses and logistics. It reads 1D and 2D barcodes, including QR payment codes on phone screens, and connects over USB or USB-COM to Windows, Android, Linux and macOS.

1D / 2D barcodes
Paper and phone screens
USB / USB-COM

Features

Robust Design

The S21’s robust design suits every kind of use.

High performance

The S21 handheld scanner offers high-resolution imaging and quickly reads a wide range of barcodes, from small codes to long-distance scanning.

Specifications

Performance

Image sensor	CMOS 640(H)× 800(V)
Resolution	Code 39 4mil
Mode	Manual Scan,Automatic Induction scan
System supported	Linux, Android, Windows XP, 7, 8, 10,MACOS
Motion tolerance	2.5 m/s
Print contrast	25%
Symbologies 1D	UPC/EAN, UPC/EAN with supplementals,Code128, GS1-128, Code 39, Trioptic, Code 32, Code 93,Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5,Industrial 2 of 5,Codabar,CodablockF,MSI,Telepen,Code11,GS1 DataBar variants
Symbologies 2D	PDF417, MicroPDF417,Composite Code,Data Matrix,Maxicode, QR Code, MicroQR, Aztec , etc
POSTAL CODE	Australian Post, British Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), etc
Raw/Pitch/Yaw	360°, ±60°, ±70°
Data output editing	Prefix&suffix
Keyboard language	English, Chinese
Decode capacity	1D/2D Codes on printed paper and mobile screen
Decode range	5 mil code39 30 mm~160 mm; 13 mil EAN-13 50 mm~340 mm; 10 mil QRcode 30 mm~150 mm; 10 mil PDF417 30 mm~210 mm

Mechanical

Net weight/gross weight	120 g
Dimension	159 mm* 65.5mm*85mm
Cable	180CM±3CM
Notification	LED, BEEPER
Interface	USB USB-COM

Environment parameter

Operating temperature	-20℃~+50℃
Storage temperature	-40℃~+85℃
Relative humidity	5%~95%（No-condensation）
Operating vibration	10~150HZ, 0.5G, triaxial direction,1min/oct, 1 time/axial
Durable vibration	10~150HZ, 2G, triaxial direction, 1min/oct, 20 times/axial
Fall test	Withstand 1.2m drop to cement floor (50 times of 1.2m repeated)
