OEM Engine · DM95

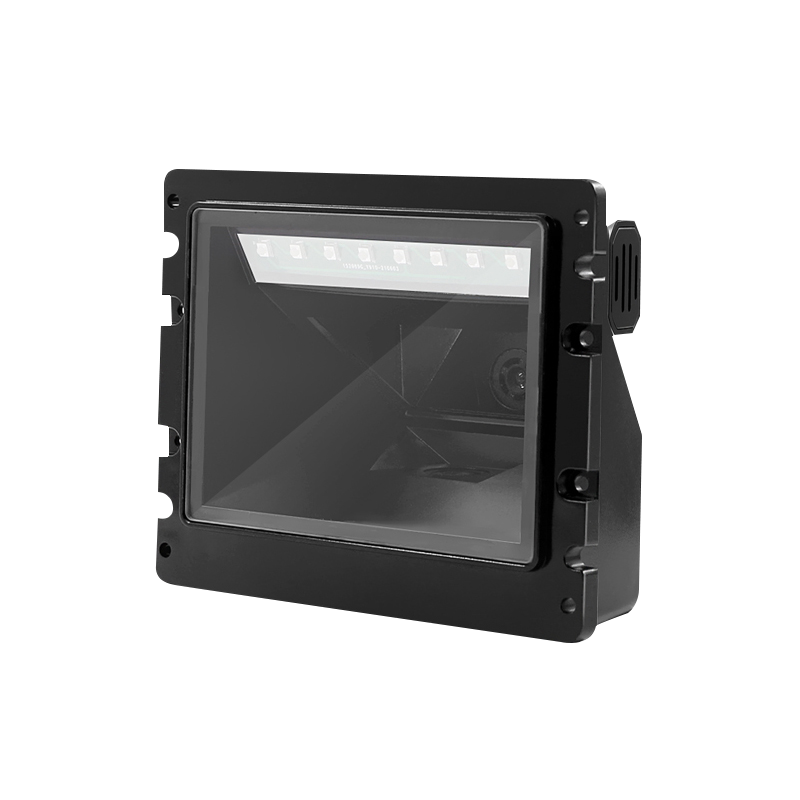

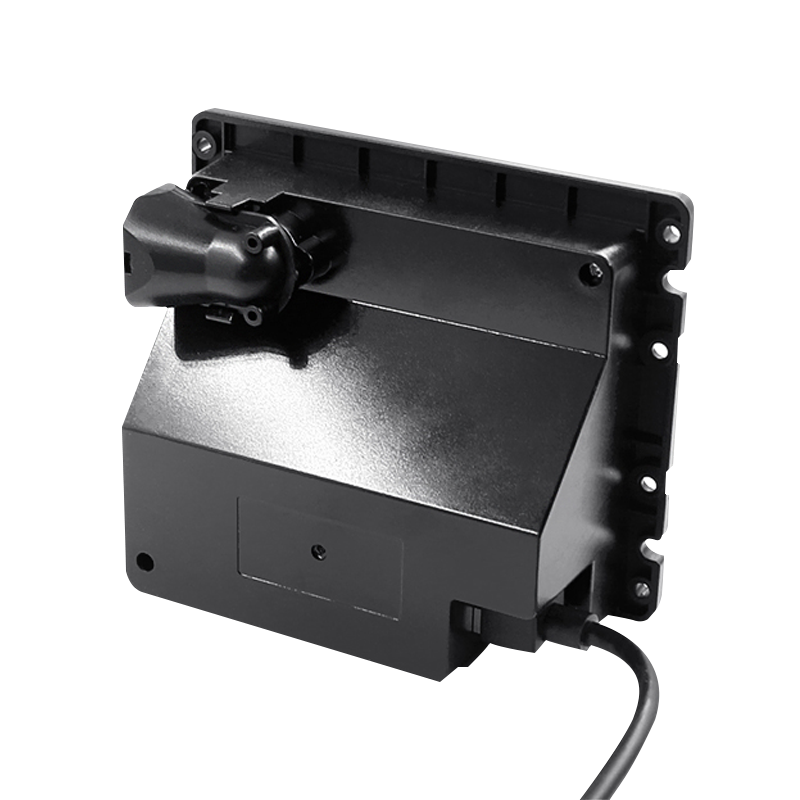

DM95 2D Barcode Scan Module – USB/RS232

The Targetpoint DM95 is a compact 2D scan module with a 1280 × 800 sensor and a wide 60° field of view. With USB and RS232 interfaces it installs easily in kiosks, ticket gates, vending machines and other OEM equipment.

CMOS 1280(H)× 800(V)
Red LED illumination
Multiple Interfaces

Features

Compact & Lightweight Design

Compact & Lightweight design of the DM95 makes it easy to integrate into different kinds of equipment and environments

Multiple Interfaces

DM95 Scan module supports USB, RS232 interfaces to meet diverse customer needs.

High performance

The DM95 module reads barcodes quickly, even when they are wet, scratched or stained.

Specifications

Performance

Image sensor	CMOS 1280× 800
Illumination	Red LED
Field of view	Horizontal 60°, Vertical 40°
Symbologies 1D	UPC/EAN, UPC/EAN with supplementals,Code128, GS1-128, Code 39, Trioptic, Code 32, Code 93,Code11, Matrix 2 of 5, Interleaved 2 of 5 IATA 2 of 5,Industrial 2 of 5,Codabar,CodablockF,MSI,Telepen,Code11,GS1 DataBar variants
Symbologies 2D	PDF417, MicroPDF417,Composite Code,Data Matrix,Maxicode, QR Code, MicroQR, Aztec , etc
POSTAL CODE	Australian Post, British Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), etc
DOF	EAN-13 (13mil) 0~200mm; PDF417 (6mil) 0~110mm; Code39 (5mil) 0~100mm; QR Code (15mil) 0~150mm
Contrast	≥20%

Mechanical

Dimensions(mm)	115.2(W)×96.2(D)×50.6(H)
Operating voltage	5VDC±5%
Operating current	250mA (RMS Typical), 320mA (RMS Max)
Standby current	150mA

Environment parameter

Operating temperature	-10~60℃
Storage temperature	-40~70℃
Relative humidity	5%~95%（No-condensation）
ESD	±15kV (air discharge), ±8kV (direct discharge)
IP Grade	IP52
