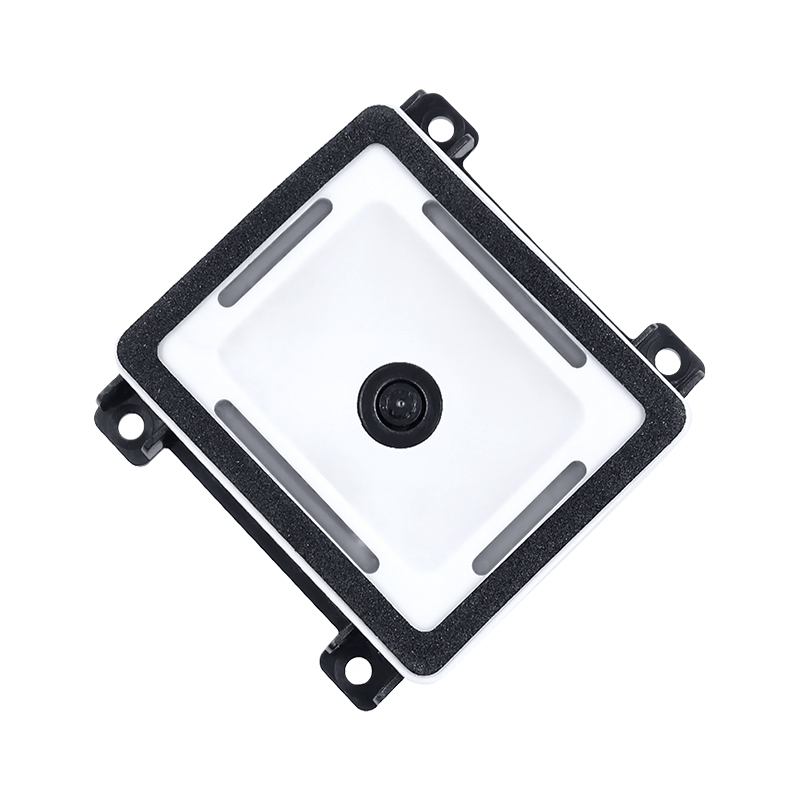

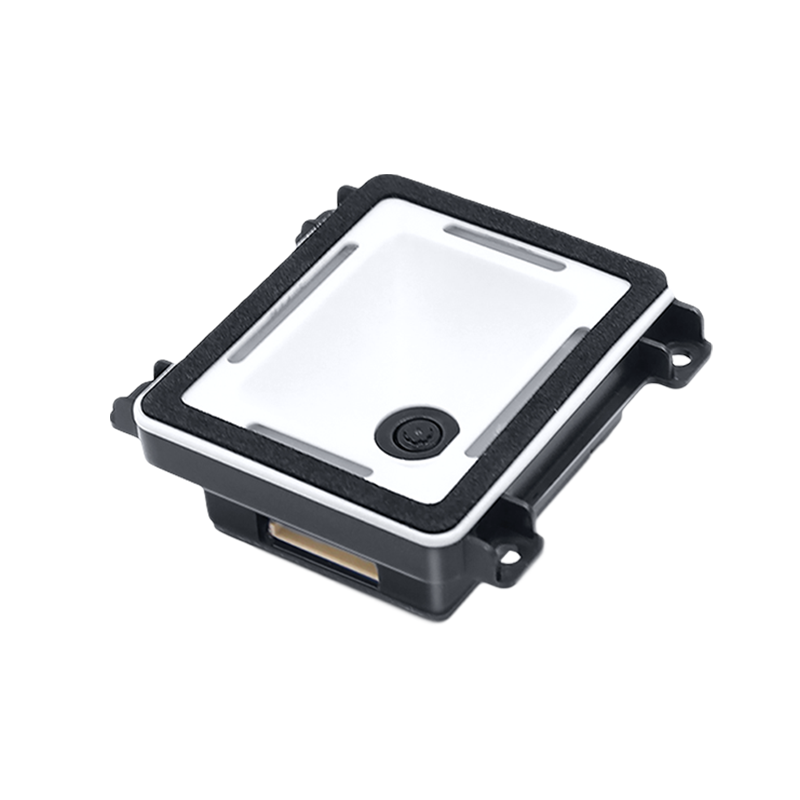

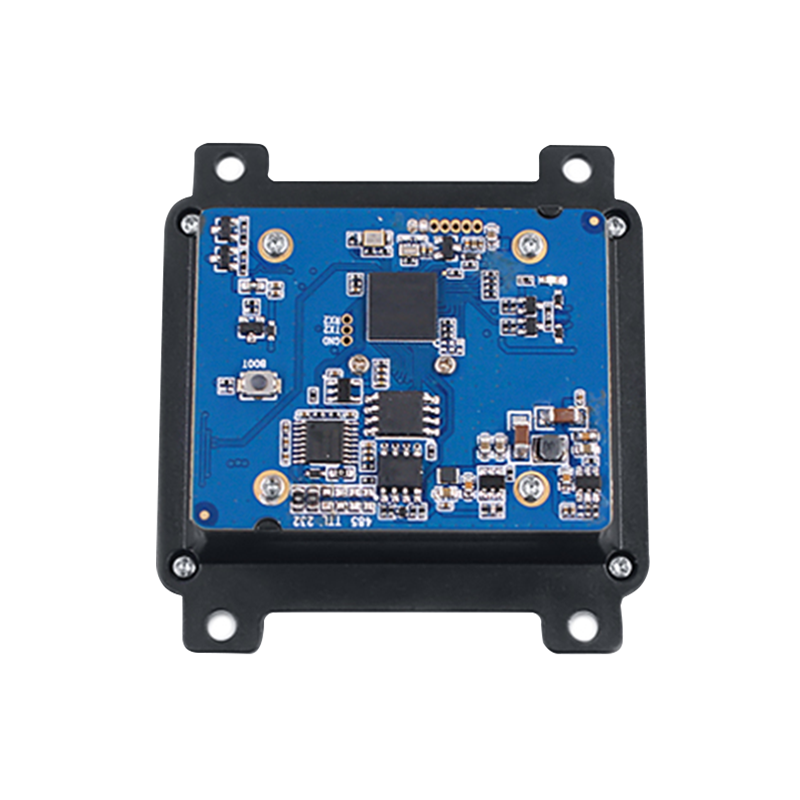

DM48 2D Barcode Scan Module – USB/RS232
The Targetpoint DM48 is a compact 2D scan module with a very wide field of view, made for kiosks, access control gates, lockers and other self-service equipment. TTL-232, USB, RS232, RS485 and Wiegand interfaces make it easy to connect to almost any controller.
- CMOS 640(H)× 480(V)
- White light illumination
- Huge scan FOV
- Multiple interfaces
Features
Compact & Lightweight Design
Compact & Lightweight design of the DM48 makes it easy to integrate into different kinds of equipment and environments
Multiple Interfaces
The DM48 scan module supports TTL-232, USB, RS232 , RS485, Wiegand interfaces to meet diverse customer needs.
High performance
The DM48 module reads barcodes quickly, even when they are wet, scratched or stained.
Specifications
Performance
| Image sensor | Mono CMOS 640(H)× 480(V) |
|---|---|
| Illumination | White light |
| Field of view | Diagonal 87.1°, Horizontal 74°, Vertical 65° |
| Symbologies 1D | UPC/EAN, UPC/EAN with supplementals,Code128, GS1-128, Code 39, Trioptic, Code 32, Code 93,Code11, Matrix 2 of 5, Interleaved 2 of 5 IATA 2 of 5,Industrial 2 of 5,Codabar,CodablockF,MSI,Telepen,Code11,GS1 DataBar variants |
| Symbologies 2D | PDF417, MicroPDF417,Composite Code,Data Matrix,Maxicode, QR Code, MicroQR, Aztec , etc |
| POSTAL CODE | Australian Post, British Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), etc |
| DOF | EAN-13 (13mil) 5~90mm; PDF417 (6mil) 5~55mm; Code39 (5mil) 18~45mm; Data Matrix (10mil) 5~60mm; QR Code (15mil) 5~80mm |
| Resolution | 1D Code 39:5mil,2D Data Matrix:9mil |
| Contrast | ≥20% |
| Pitch/Tilt/Skew | ±70° ±180° ±70° |
Mechanical
| Dimensions(mm) | 61.1(W)×64.8(D)×26(H) |
|---|---|
| Operating voltage | 5VDC±5% |
| Operating current | 210mA(RMS Typical), 250mA(RMS Max) |
| Standby current | 150mA |
Environment parameter
| Operating temperature | -10~60℃ |
|---|---|
| Storage temperature | -40~70℃ |
| Relative humidity | 5%~95%（No-condensation） |
| Operating vibration | 10~150HZ, 0.5G, triaxial direction,1min/oct, 1 time/axial |
| Durable vibration | 10~150HZ, 2G, triaxial direction, 1min/oct, 20 times/axial |
| Fall test | Withstand 1.2m drop to cement floor (50 times of 1.2m repeated) |

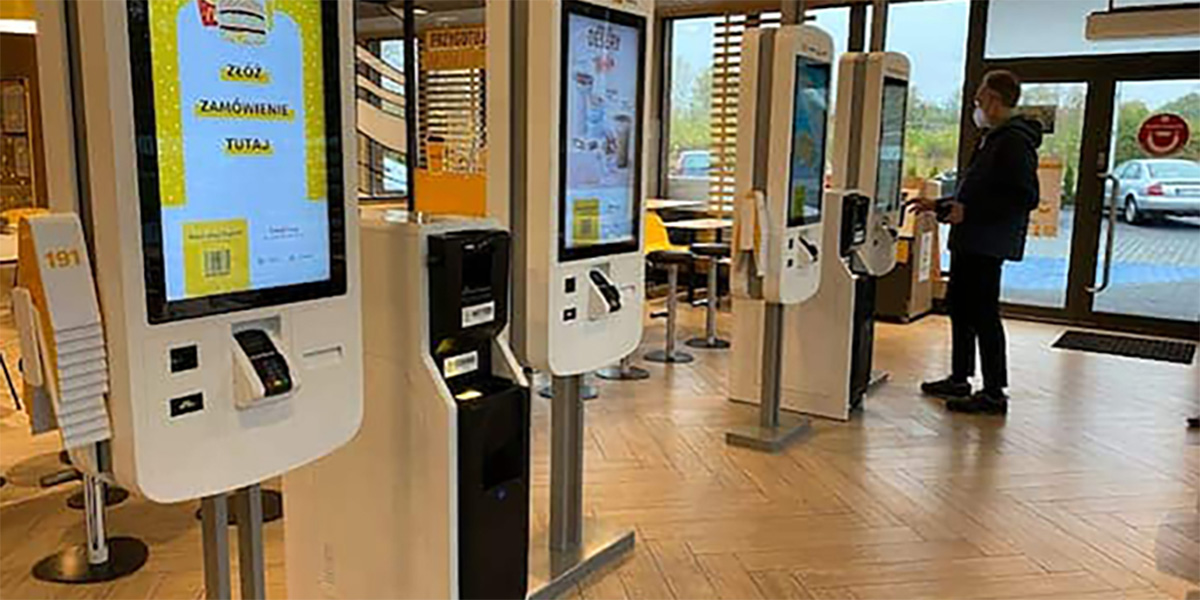

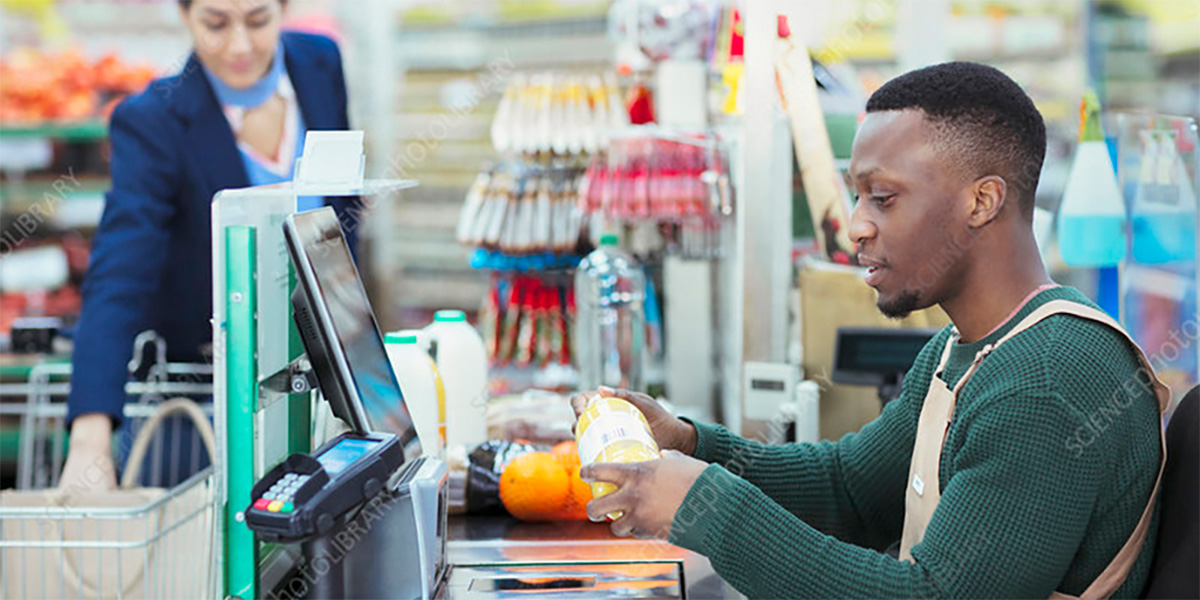

Applications
Downloads & support
Everything you need to evaluate and integrate this model. Documents that are not public yet are sent by our team on request.
