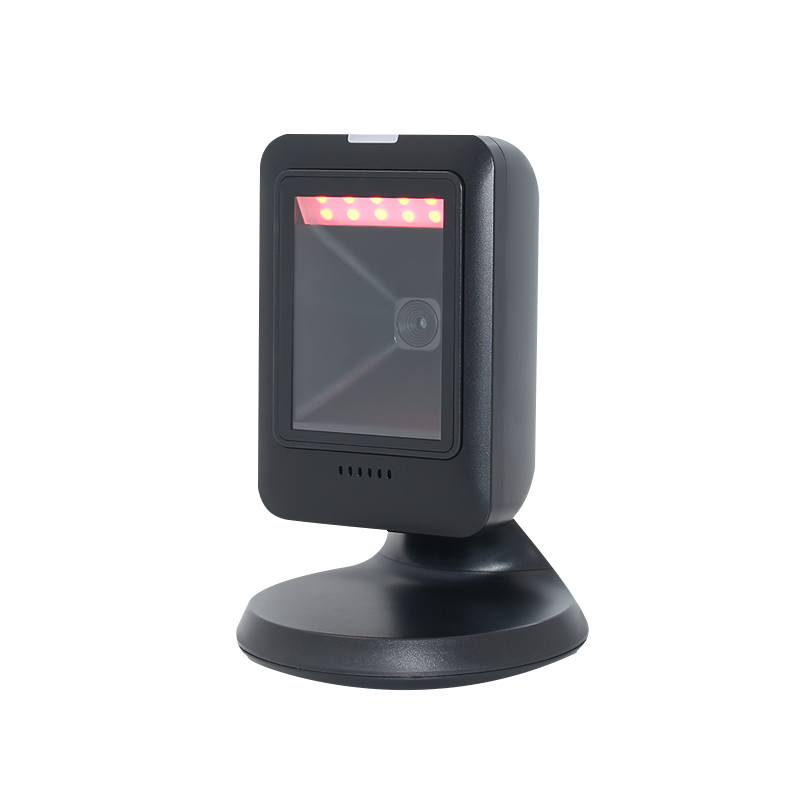

DKP301 Desktop 2D Barcode Scanner

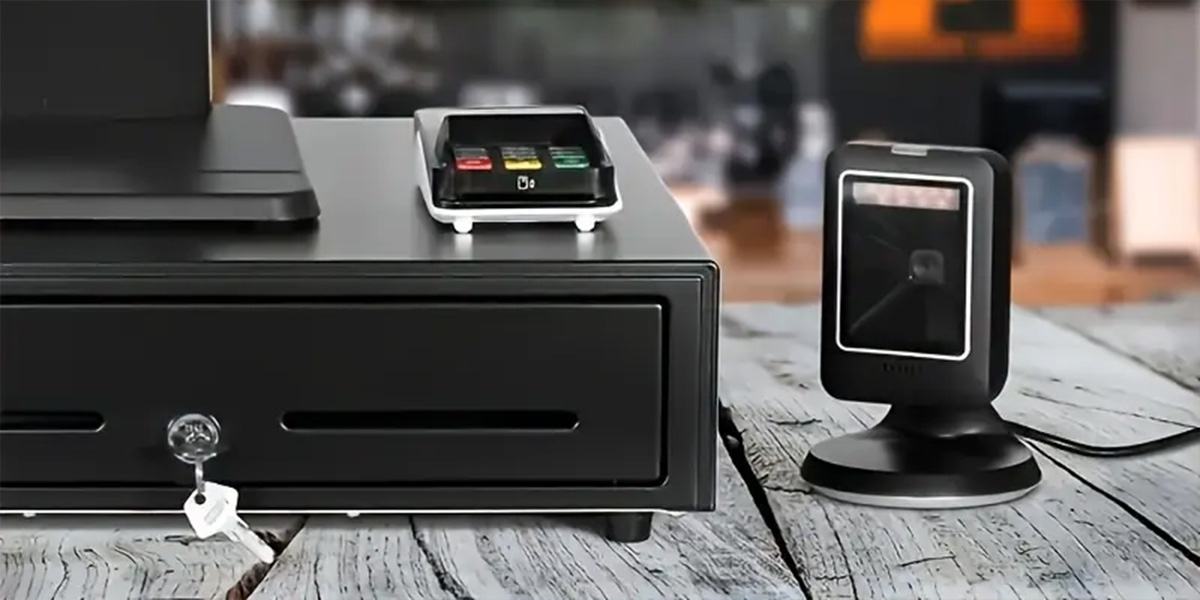

The Targetpoint DKP301 is a desktop 2D barcode scanner for hands-free scanning at the checkout. Its automatic induction mode reads barcodes and QR codes from paper or phone screens the moment they are presented, and it connects over USB or USB-COM to Windows, Android, Linux and macOS.
- CMOS 640(H)× 800(V)
Features

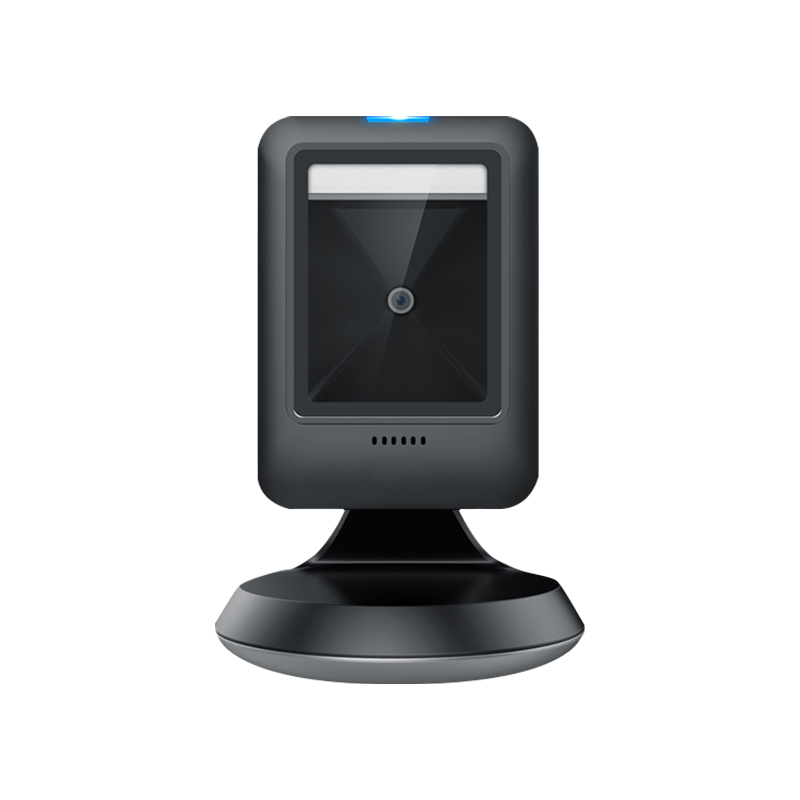

Premium Design
The DKP301’s premium design comes in wired and Bluetooth versions
High performance
The DKP301 desktop scanner offers high-resolution imaging and quickly reads a wide range of barcodes, from small codes to long-distance scanning.
Specifications
Performance
| Image sensor | Mono CMOS 640(H)× 800(V) |
|---|---|
| Resolution | Code 39 4mil |
| Mode | Manual Scan,Automatic Induction scan |
| System supported | Linux, Android, Windows XP, 7, 8, 10,MACOS |
| Motion tolerance | 3.2 m/s |
| Print contrast | 20% |
| Symbologies 1D | UPC/EAN, UPC/EAN with supplementals,Code128, GS1-128, Code 39, Trioptic, Code 32, Code 93,Code11, Matrix 2 of 5, Interleaved 2 of 5 IATA 2 of 5,Industrial 2 of 5,Codabar,CodablockF,MSI,Telepen,Code11,GS1 DataBar variants |
| Symbologies 2D | PDF417, MicroPDF417,Composite Code,Data Matrix,Maxicode, QR Code, MicroQR, Aztec , etc |
| POSTAL CODE | Australian Post, British Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), etc |
| Raw/Pitch/Yaw | 360°, ±60°, ±70° |
| Data output editing | Prefix&suffix |
| Keyboard language | English, Chinese |
| Decode capacity | 1D/2D Codes on printed paper and mobile screen |
| Decode range | 5mil code39 1cm~15cm 13mil UPC 3cm~26cm 15 mil code39 5cm~20cm 20 mil QR Code 2cm 18cm |
Mechanical
| Net weight/gross weight | 131g/277g |
|---|---|
| Dimension | 173.3mm* 68mm*96.9mm |
| Cable | 180CM±3CM |
| Notification | LED, BEEPER |
| Interface | USB USB-COM |
Environment parameter
| Operating temperature | -20℃~+50℃ |
|---|---|
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 5%~95%（No-condensation） |
| Operating vibration | 10~150HZ, 0.5G, triaxial direction,1min/oct, 1 time/axial |
| Durable vibration | 10~150HZ, 2G, triaxial direction, 1min/oct, 20 times/axial |
| Fall test | Withstand 1.2m drop to cement floor (50 times of 1.2m repeated) |
