IA230 IA230 Wired & Bluetooth 2D Barcode Scanner
Peripherals · IA230

IA230 Wired & Bluetooth 2D Barcode Scanner

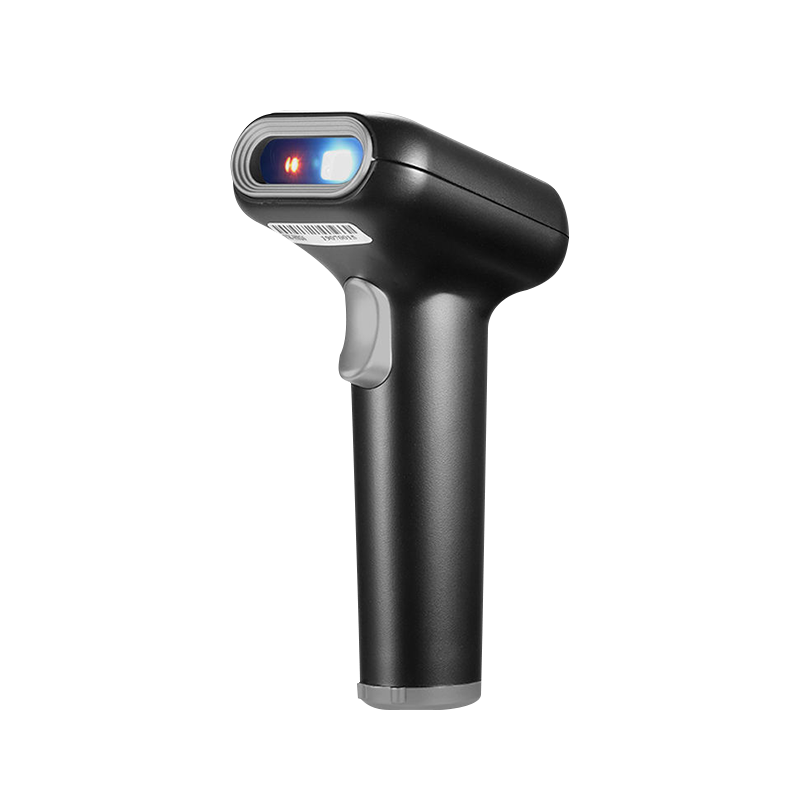

The Targetpoint IA230 is a handheld 2D barcode scanner available in wired and Bluetooth versions. It reads 1D, 2D and postal codes from labels and phone screens, supports manual and automatic scanning, and works with Windows, Android, Linux and macOS without extra drivers.

  • 1D / 2D barcodes
  • Wired or Bluetooth
  • USB / USB-COM
Request a quote Download datasheet (PDF)

Features

Premium Design

The IA230’s premium design comes in wired and Bluetooth versions

High performance

The IA230 handheld scanner offers high-resolution imaging and quickly reads a wide range of barcodes, from small codes to long-distance scanning.

Specifications

Performance

Image sensorMono CMOS 640(H)× 480(V)
ResolutionCode 39 4mil
ModeManual Scan,Automatic Induction scan
System supportedLinux, Android, Windows XP, 7, 8, 10,MACOS
Motion tolerance2.5 m/s
Print contrast25%
Symbologies 1DUPC/EAN, UPC/EAN with supplementals,Code128, GS1-128, Code 39, Trioptic, Code 32, Code 93,Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5,Industrial 2 of 5,Codabar,CodablockF,MSI,Telepen,Code11,GS1 DataBar variants
Symbologies 2DPDF417, MicroPDF417,Composite Code,Data Matrix,Maxicode, QR Code, MicroQR, Aztec , etc
POSTAL CODEAustralian Post, British Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), etc
Raw/Pitch/Yaw360°, ±60°, ±70°
Data output editingPrefix&suffix
Keyboard languageEnglish, Chinese
Decode capacity1D/2D Codes on printed paper and mobile screen
Decode range5mil code39 1cm~15cm; 13mil UPC 3cm~26cm; 15 mil code39 5cm~20cm; 20 mil QR Code 2cm 18cm

Mechanical

Net weight/gross weight131g/277g
Dimension173.3mm* 68mm*96.9mm
Cable180CM±3CM
NotificationLED, BEEPER
InterfaceUSB USB-COM

Environment parameter

Operating temperature-20℃~+50℃
Storage temperature-40℃~+85℃
Relative humidity5%~95%（No-condensation）
Operating vibration10~150HZ, 0.5G, triaxial direction,1min/oct, 1 time/axial
Durable vibration10~150HZ, 2G, triaxial direction, 1min/oct, 20 times/axial
Fall testWithstand 1.2m drop to cement floor (50 times of 1.2m repeated)

Applications

Supermarket
Supermarket
Payment
Payment
Self-order
Self-order
Mall
Mall
Checkout
Checkout
Parking
Parking

Downloads & support

Everything you need to evaluate and integrate this model. Documents that are not public yet are sent by our team on request.

DatasheetPDF · IA230Download datasheet User manualAvailable on requestRequest SDKAvailable on requestRequest Product videosYouTubeWatch on YouTube
